Parsing

This section is a short refresher on the basics of parsing, and LR parsing in particular. For a more in-depth coverage I suggest the following books:

• Dick Grune, Ceriel J.H. Jacobs: Parsing Techniques: A Practical Guide, Springer Science & Business Media, ISBN 0387689540, 9780387689548. 2007.
• Aho, Alfred Vaino; Lam, Monica Sin-Ling; Sethi, Ravi; Ullman, Jeffrey David Compilers: Principles, Techniques, and Tools (2 ed.). Boston, Massachusetts, USA: Addison-Wesley. ISBN 0-321-48681-1. OCLC 70775643. 2006.

There are two main approaches to parsing:

• Top-down - in which the parser starts from the root non-terminal and tries to predict and match sub-expressions until reaching the most basic constituents (tokens). This approach is used by LL(k), parser combinators, packrat etc.
• Bottom-up - in which the parser starts from the most basic constituents (tokens) and tries to organize them into larger and larger structures until eventually reaches the root non-terminal. This approach is used by LR(k) variants (SLR, LALR, Canonical LR) and its generalized flavor GLR.

Historically, the most popular flavors of parser algorithms using both approaches were deterministic ones where the parser decides what to do by looking at fixed number of tokens ahead (usually just one) and never backtracks. These approaches were particularly popular due to their linear time complexity and guaranteed unambiguity, i.e. if the input is parsed successfully there can be exacly one representation/interpretation.

Top-down parsers are generally easier to debug and understand while bottom-up parsers are generally more powerful as the parser doesn't need to predict eagerly and commit in advance to what is ahead but can postpone that decision for later when it has collected more information.

LR parsing

LR parser uses a bottom-up approach. It takes tokens from the input and tries to organize them into bigger constructs. The process is based on a deterministic finite-state automata. Finite-state automata are machines that have a concept of a state, input and action. The machine makes a transition to another state based on the current state and the token it sees ahead (input). If for each state and each token ahead there is only one transition possible then we say that the FSA is deterministic (DFSA), if zero or multiple transitions are possible then we are dealing with a non-deterministic FSA.

LR parser uses DFSA. While it can be written manually, it would be a very tedious process and thus in practice we use compiler generators (aka compiler compilers) to automatically produce a program that represents the DFSA (and the rest of the LR parser) for the given grammar. Automata are usually represented by a table used during parsing to decide the action and transition to perform.

Given a sequence of tokens, if machine starts in a start state and end-up in an accepting state, we say that the sequence of tokens (a sentence) belongs to the language recognized by the DFSA. A set of languages which can be recognized by DFSA are called deterministic context-free languages - CFG. NFSA can recognize a full set of CFG. GLR parsing is based on NFSA.

Depending on the algorithm used to produce the FSA table we have different LR variants (SLR, LALR etc.). They only differ by the table they use, the parsing algorithm is the same.

Each state of the parser FSA is related to the grammar symbol and when a parser reaches a particular state we can tell that the last symbol it saw is the symbol related to the current state.

The parser also keeps a history of what it has seen so far on the parse stack. We can think of a content of the stack as a sequence of symbols the parser saw before reaching the current state.

At each step, based on the current state and the token ahead the parser can perform one of the following operations:

• Shift - where the parser takes the token ahead, puts it on the stack and transition to the next state according to the table,
• Reduce - where the parser takes zero or more symbols from the stack and replaces them by another higher-level symbol. For example, if we have states on the stack that represent symbols sequence Expression + Expression, the parser can take these three symbols from the top of the stack and replace them by Add. For this to happen, the grammar must have a production Add: Expression + Expression. Basically, reduction operation reduce a pattern from the right-hand side to the symbol on the left-hand side in the grammar production. A decision on which reduction to perform is specified by the FSA table.
• Accept - if the parser reaches accepting state while consuming all the tokens from the input and reducing the parse stack to the root symbol the parsing succeeded.
• Error - If there is no action that can be performed for the current state and the token ahead the parser reports an error.

Let's see this in practice on the Rustemo example.

We have a simple grammar that parses expression with just + operation.

Expression: Add | Num;
Add: Expression '+' Expression {left};
terminals
Num: /\d+/;
Plus: '+';

If we parse the input 3 + 2 + 1 with the parser compiled in debug profile the log trace will have these messages at the position where the parser saw 3 + 2 and sees + ahead:

Context at 5[1,5]:
3 + 2--> + 1

Skipped ws: 1
Trying recognizers: [STOP, Plus]
	Recognizing STOP -- not recognized
	Recognizing Plus -- recognized
Token ahead: Plus("\"+\"" [1,6-1,7])
Stack: [
    State(0:AUG, 0..0 [0]),
    State(2:Expression, 0..1 [1,0-1,1]),
    State(4:Plus, 2..3 [1,2-1,3]),
    State(1:Num, 4..5 [1,4-1,5]),
]

The states on the stack give us information of what the parser saw previously.

The states represented in the log are from bottom to top. Each state has numeric identifier, the grammar symbol and the position in both absolute and line/column-based location.

The AUG state is the start state of the parser.

At the current location, the parser saw an expression, a plus token and a number. The next thing that parser decides to do is to reduce by production Expression: Num, thus replacing the top symbol on the stack Num with Expression.

Reduce by production 'Expression: Num', size 1
GOTO 4:Plus -> 5:Expression
Stack: [
    State(0:AUG, 0..0 [0]),
    State(2:Expression, 0..1 [1,0-1,1]),
    State(4:Plus, 2..3 [1,2-1,3]),
    State(5:Expression, 4..5 [1,4-1,5]),
]
Current state: 5:Expression

Now, the parser is in the state Expression and the LR parsing table instructs the parser to reduce by production Add: Expression Plus Expression which takes the last three states/symbols from the stack and replace them with Add. Thus, currently the parser has seen an addition:

Reduce by production 'Add: Expression Plus Expression', size 3
GOTO 0:AUG -> 3:Add
Stack: [
    State(0:AUG, 0..0 [0]),
    State(3:Add, 0..5 [1,0-1,5]),
]
Current state: 3:Add

Another reduction is done by production Expression: Add replacing the Add state at the top of the stack with Expression. Thus, currently the parser has seen an expression:

Reduce by production 'Expression: Add', size 1
GOTO 0:AUG -> 2:Expression
Stack: [
    State(0:AUG, 0..0 [0]),
    State(2:Expression, 0..5 [1,0-1,5]),
]
Current state: 2:Expression

Since no further reductions are possible the parser shifts the next token to the top of the stack:

Shifting to state 4:Plus at location [1,6-1,7] with token Plus("\"+\"" [1,6-1,7])
Context at 7[1,7]:
3 + 2 +--> 1

Skipped ws: 1
Trying recognizers: [Num]
	Recognizing Num -- recognized '1'
Token ahead: Num("\"1\"" [1,8-1,9])
Stack: [
    State(0:AUG, 0..0 [0]),
    State(2:Expression, 0..5 [1,0-1,5]),
    State(4:Plus, 6..7 [1,6-1,7]),
]
Current state: 4:Plus

The parser repeats the process until it reduce the whole input to the root grammar symbol - Expression. At the end we can see:

Reduce by production 'Expression: Add', size 1
GOTO 0:AUG -> 2:Expression
Stack: [
    State(0:AUG, 0..0 [0]),
    State(2:Expression, 0..9 [1,0-1,9]),
]
Current state: 2:Expression
Accept

A tree-based interpretation

A usual interpretation of shift/reduce operations is building the parse tree. The content of the parse stack is then interpreted as a sequence of sub-trees where shifted token is a terminal node (a leaf of the tree) and each reduced symbol is a non-terminal node (a non-leaf node).

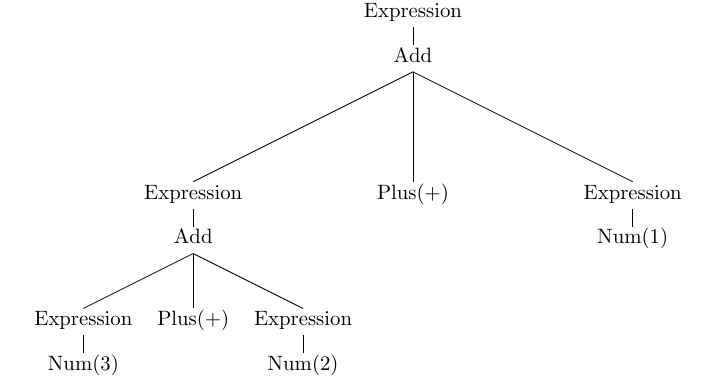

For the input 3 + 2 + 1 and the grammar above the tree is:

Leaf nodes (e.g. Plus(+), Num(3)) are created by shift operations. Non-leaf nodes (e.g. Add, Expression) are created by reducing their child nodes.

It is now easy to see that the tree has been built bottom-up, starting from leaf terminal and reducing up to the root symbol of the grammar. Thus we say that the LR parsing is bottom-up.

Building outputs

During shift/reduce operation, LR parser usually execute what we call semantic actions which job is to build the parsing output. In Rustemo, these actions are passed to a component called builder which is in charge of building the final result.

The default builder will build the Abstract-Syntax Tree (AST) with Rust types inferred from the grammar. There is also the generic tree builder. And finally, the user can supply a custom builder. For the details see the section on builders.

Rustemo parsing overview

The diagram bellow depict the high-level overview of the parsing process in Rustemo:

• LR parser works in a loop.
• If there is no lookahead token the parser asks the lexer to recognize the next token.
• The parser do all possible reductions. For each reduction the parser calls the builder.
• The parser performs shift operation, calls the builder and asks the lexer to recognize the next token.
• The process continues until we reach the end of the input and the parser gets to the accept state. Otherwise we report an error.

GLR parsing

GLR is a generalized version of LR which accepts a full set of CFG. If multiple parse actions can be executed at the current parser state the parser will split and investigate each possibility. If some of the path prove wrong it would be discarded (we call these splits - local ambiguities) but if multiple paths lead to the successful parse then all interpretations are valid and instead of the parse tree we get the parse forest. In that case we say that our language is ambiguous.

Due to the fact that automata handled by GLR can be non-deterministic we say that GLR is a form of non-deterministic parsing. See more in the section on resolving LR conflicts.

Rustemo uses a particular implementation of the GLR called Right-Nulled GLR which is a correct and more efficient version of the original GLR.
